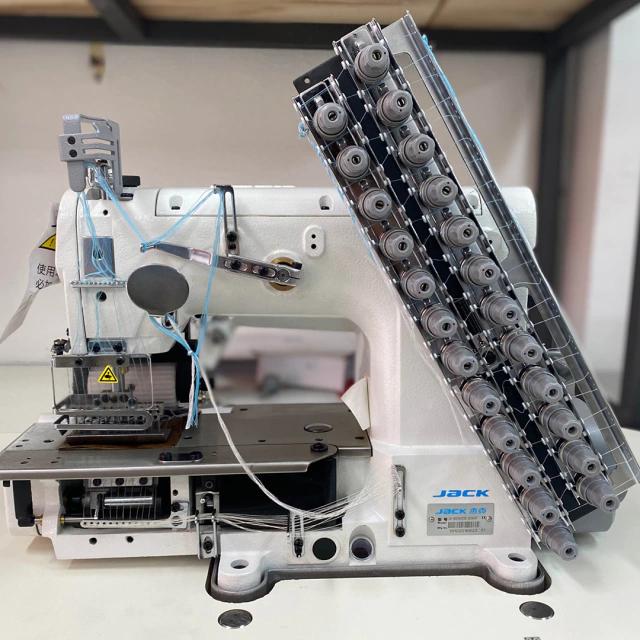

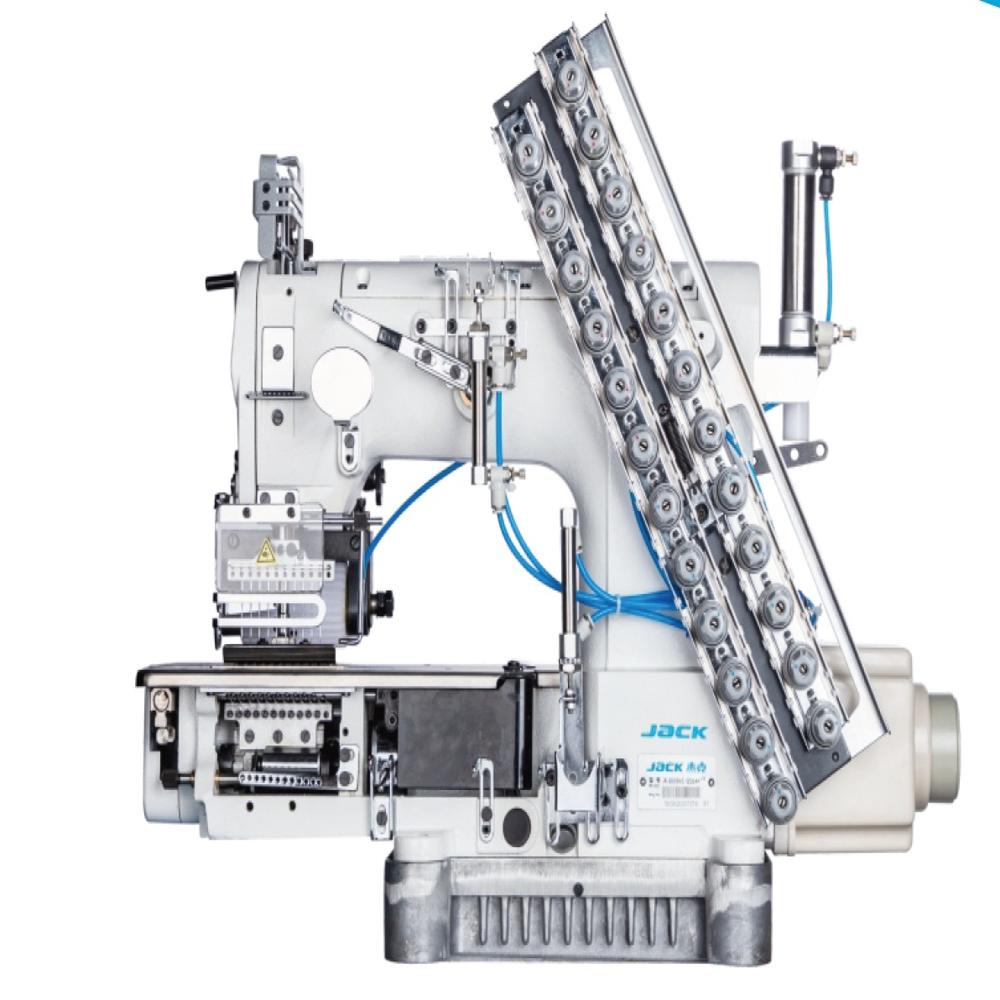

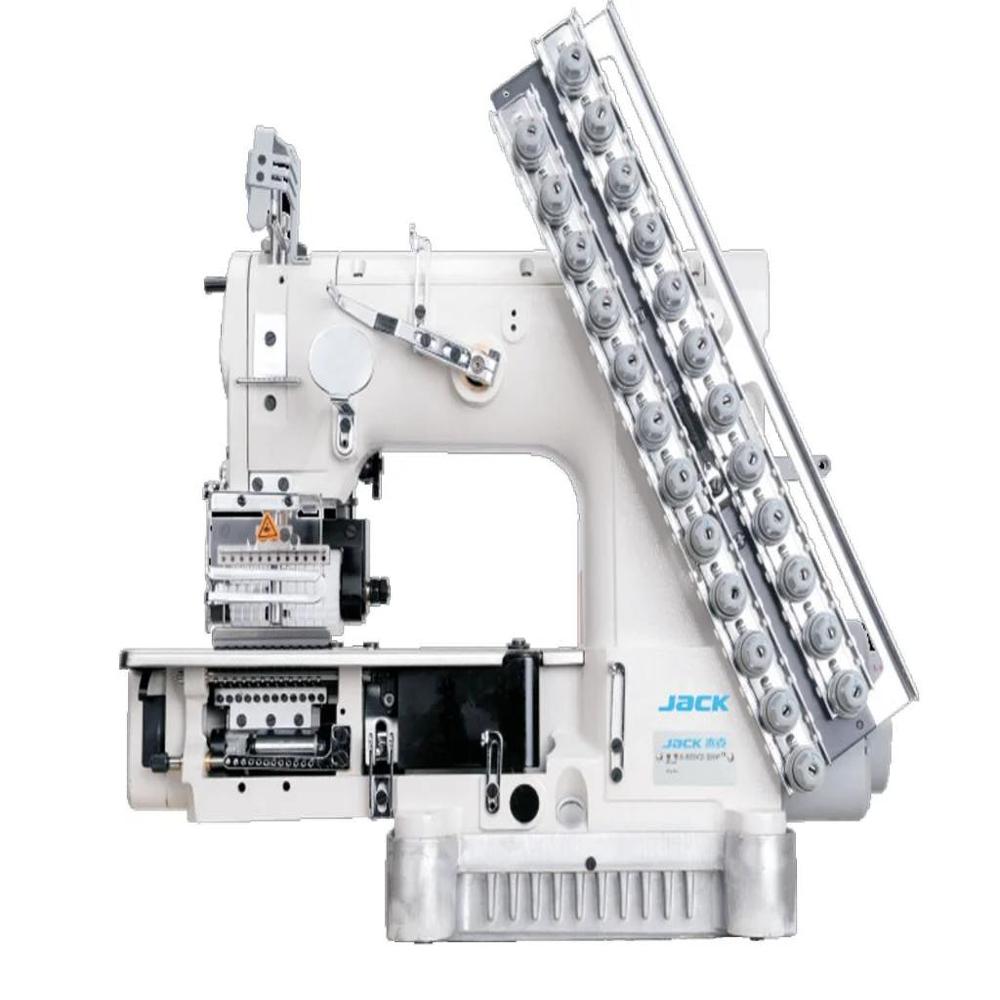

Jack JK-8009VCD Multi-Needle Elastic Insertion & Placket Chainstitch Machine

78750.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jack JK-8009VCD Multi-Needle Elastic Insertion & Placket Chainstitch Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 78750.0 INR/Piece

Product Description

Basic Product Details

Product Name: Jack JK-8009 Multi-Needle Chainstitch Sewing Machine
Brand: Jack
Model Number: JK-8009 / JK-8009VCD / 8009-12064
Machine Type: Multi-Needle Chainstitch Machine / Flatbed Elastic Insertion Machine
Stitch Type: Double Chainstitch (Stitch Type 401)
Condition: New
Usage/Application: Waistband Elastic Insertion, Shirt Front Plackets, Sportswear, Underwear, Track Pants & Decorative Shirring
Suitable Fabrics: Knitted Fabrics, Light to Medium-Heavy Fabrics, Woven Garments

Product Specifications Table

Feature / Parameter	Technical Specification
Max Sewing Speed	3500 4000 SPM (Stitches Per Minute)
Number of Needles	12 Needles (Configurable for 4, 6, 8, or 12 Needles)
Number of Threads	24 Threads
Needle Gauge / Pitch	1/4 inch (6.4 mm) standard
Needle Bar Stroke	33 mm 34.5 mm
Presser Foot Lift Height	Manual: 8 mm / Knee Lifter: 12 mm
Needle System	UOx113GS (#11 to #14) / DVx57
Motor Type	Integrated Direct Drive Servo Motor
Puller System	Rear Mechanical / Pneumatic Synchronization Puller
Power Consumption	220V / 50Hz (Energy saving up to 70%)
Lubrication System	Fully Automatic Centralized Pump Oil System

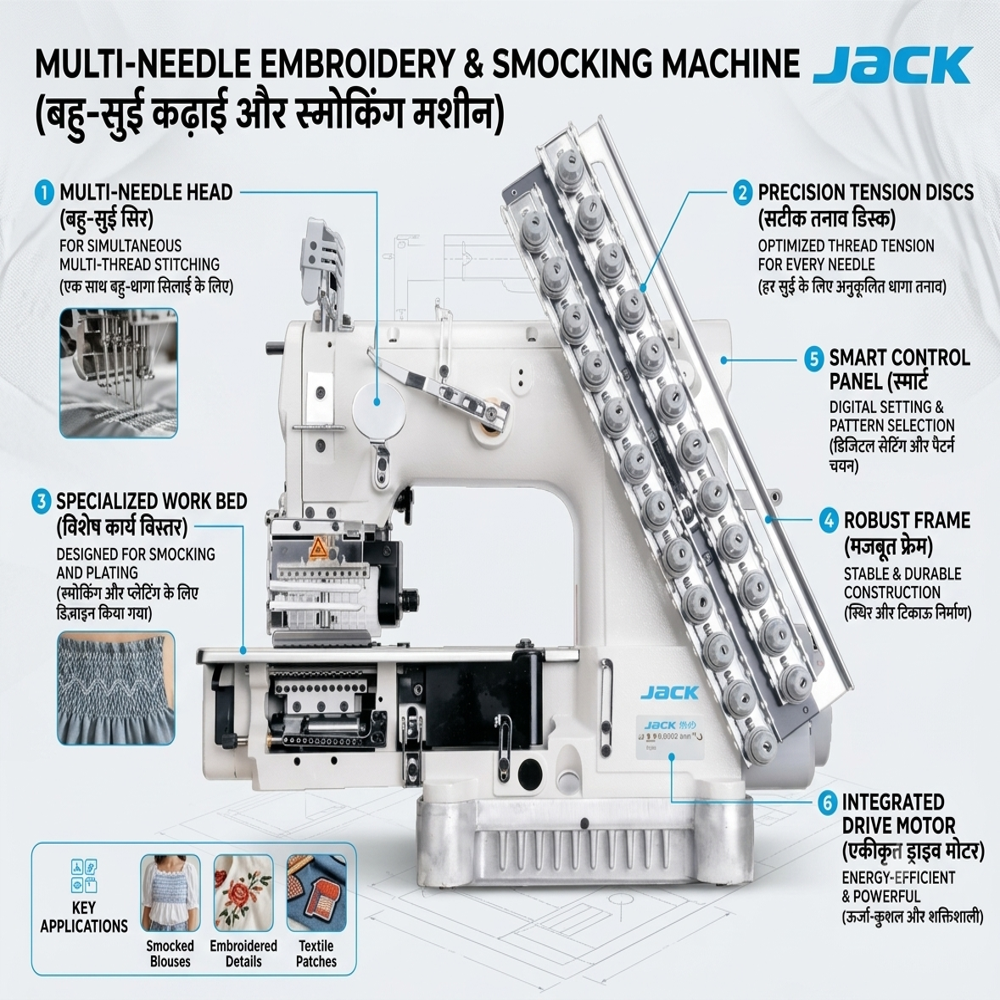

Key Features & Highlights

Multi-Needle Chainstitch System: Supports up to 12 needles and 24 threads, making it ideal for simultaneous multi-row stitching on waistbands, plackets, and decorative shirt strips.
Integrated Rear Synchronization Puller: Heavy-duty rear puller ensures smooth, uniform fabric feeding without puckering or slipping, even when inserting thick elastic bands.
Direct Drive Motor Integration: Built-in direct-drive servo motor provides fast response, minimal operational noise, low vibration, and maximum energy savings.
Versatile Stitch gauge Options: Easily removable needle holders allow custom spacing setup (e.g., 4-needle, 6-needle, or 12-needle configurations) based on production needs.
Automatic Central Lubrication: Sealed automatic oiling mechanism ensures continuous lubrication to internal high-speed components, extending machine longevity.

Detailed Product Description

The Jack JK-8009 is a high-speed multi-needle double chainstitch industrial sewing machine designed for complex waist-banding, elastic insertion, and front-placket stitching operations. Engineered with up to 12 needles, the 8009 delivers precise, parallel multi-row chainstitching required in sportswear, track pants, underwear, and shirt manufacturing.

Equipped with an integrated direct-drive servo motor and a synchronized rear puller system, the Jack JK-8009 easily handles gathered elastic fabrics and multi-layered materials without bunching or irregular spacing. Its high structural stability and automatic lubrication make it an essential productivity powerhouse for high-capacity garment factories.
