Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine

Product Video

Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine

Name: Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine
Brand: SURENDRA KUMAR & CO.
Price: 49455.0 INR
Availability: InStock

49455.0 INR/Piece

Get a Price/Quote

Product Details:

Twist direction Supports both S and Z twisted threads
Luster Semi-gloss finish on casing
Length Maximum Stitch Length: 5 mm
Material High-quality Metal Body with Electronic Components
Character Computerized, Single Needle Machine
Properties Direct-drive, Energy-saving, Intelligent Control
Style Modern Industrial Sewing Machine
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine Price And Quantity

Price 49455.0 INR/Piece
Minimum Order Quantity 1 Piece

Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine Product Specifications

Luster Semi-gloss finish on casing
Color White with Blue Accents
Yarn Type Compatible with Various Sewing Threads
Style Modern Industrial Sewing Machine
Weight Approx. 30-38 kg (varies per configuration)

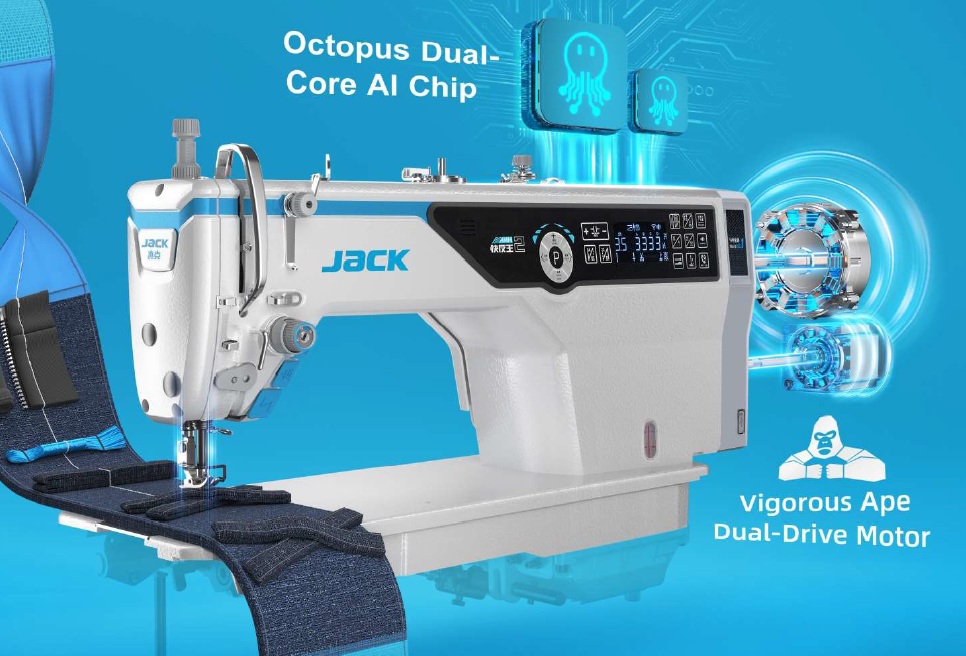

Attributes Octopus Dual-Core AI Chip, Vigorous Ape Dual-Drive Motor, LCD Touch Panel
Usage Other
Pattern Straight Stitch Lockstitch
Properties Direct-drive, Energy-saving, Intelligent Control
Twist direction Supports both S and Z twisted threads
Yarn Count Supports multiple thread counts for versatile use
Character Computerized, Single Needle Machine
Material High-quality Metal Body with Electronic Components
Length Maximum Stitch Length: 5 mm

Automatic Functions Automatic Thread Trimming, Reverse Stitching, Needle Positioning, Error Code Display
Lubrication Automatic lubrication system
Voltage 220V/240V, 50-60Hz
Thread Cutter Built-in Automatic Cutter
Drive System Vigorous Ape Dual-Drive for enhanced torque and smoothness
Power Consumption Approx. 400W
Noise Level Low-noise operation
Model Name Jack A5E Computerized Direct Drive Lockstitch
Presser Foot Lift Manual and Automatic, up to 13 mm
Lighting Integrated LED Light for working area
Sewing Speed Up to 5000 stitches per minute
Motor Type Integrated Direct Drive Servo Motor
AI Technology Octopus Dual-Core AI Chip for smart performance adjustment
Control Panel Digital Touch-sensitive LCD for easy operation
Safety Features Automatic Lock, Needle Positioning, Emergency Stop

Product Description

Product Name: Jack A5E Digital Lockstitch Sewing Machine

Brand Name: Jack

Model Name / Number: Jack A5E / A5E-B

Product Type: Computerized Lockstitch Industrial Sewing Machine

Key Product Features

AMF (Adaptive Fabric Feeding) System: Automatically senses variation in fabric thickness (from thin mesh to thick denim) without manual presser foot adjustments.

Ultra-Short Thread Tail: Advanced thread trimming mechanism leaves thread tails under 3.5 mm, eliminating manual thread trimming labor after sewing.

Sealed Oil Pan (Semi-Dry Head): Closed lubrication system prevents oil leaking onto delicate garments, keeping shirts and expensive fabrics stain-free.

Digital Stepper Motor Control: Precise digital stitch length adjustment and customizable decorative stitching patterns directly via the panel.

Integrated Voice Navigation System: Voice guide alerts operators about machine errors, operational guidance, and oil level alerts.

Detailed Product Description

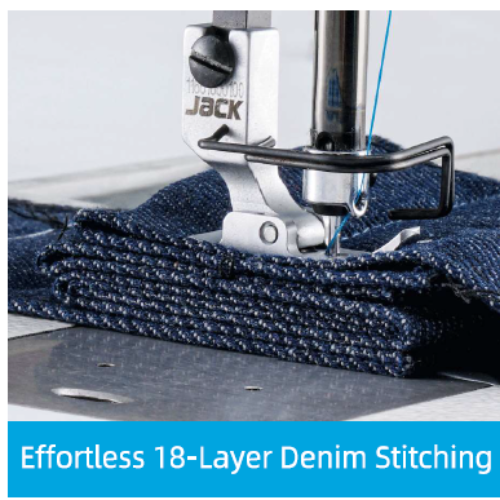

The Jack A5E is an industry-leading computerized single needle lockstitch machine designed for high-efficiency garment manufacturing. Equipped with an Adaptive Motion Feed (AMF) system, the A5E seamlessly adapts to varying fabric weightsfrom lightweight chiffons and knits to heavy denim and multi-layer seamswithout puckering or skipped stitches.

Driven by an energy-efficient direct-drive servo motor, the Jack A5E features full automation including auto foot lifting, automatic thread trimming, digital stitch control, and automatic backtacking. Its short-tail thread trimmer and sealed oil reservoir significantly reduce post-processing costs while ensuring clean, high-quality production across apparel manufacturing lines.

Intelligent Performance with Smart AI Control

The Jack A5E is powered by the Octopus Dual-Core AI Chip, which intelligently adapts motor performance to fabric and stitching requirements. This innovation ensures optimal sewing speed, precise stitch control, and consistent quality for diverse sewing applications.

User-Friendly Operation and Digital Controls

Offering a touch-sensitive LCD control panel, the Jack A5E ensures ease of use with intuitive navigation. Users can conveniently access settings like stitch length, needle positioning, and automatic functions, making operation straightforward for both beginners and professionals.

Enhanced Durability and Sewing Versatility

Built with a robust metal body and energy-saving direct-drive mechanism, this machine handles a wide range of garment materials and thread types. The automatic lubrication system contributes to smooth, efficient performance and extended machine life, ideal for high-volume manufacturing.

FAQ's of Jack A5E Computerized Direct Drive Single Needle Lockstitch Sewing Machine:

Q: How does the Octopus Dual-Core AI Chip benefit my sewing process?

A: The Octopus Dual-Core AI Chip analyzes and adapts motor output in real-time, ensuring consistent stitch quality and optimal speed. It intelligently adjusts based on fabric thickness and stitching demands, enhancing efficiency and reducing errors during varied sewing tasks.

Q: What automatic functions does the Jack A5E offer for improved workflow?

A: This model features automatic thread trimming, reverse stitching, needle positioning, and built-in error code display. These automation advancements streamline the sewing process, minimize manual intervention, and contribute to a faster, more reliable production line.

Q: When should I use the manual versus the automatic presser foot lift?

A: Use the manual presser foot lift for precise control or handling delicate fabrics. The automatic lift is best suited for repetitive tasks and thicker materials, offering up to 13 mm clearance to accommodate various sewing scenarios efficiently.

Q: Where is the Jack A5E most effectively utilized?

A: The Jack A5E excels in apparel industries, clothing manufacturing facilities, and general sewing workshops. Its versatility and smart controls make it suitable for small-scale production or high-demand garment assembly lines.

Q: What process does the digital LCD panel simplify for users?

A: The digital touch-sensitive LCD panel streamlines adjustments for stitch length, speed, and needle positioning. It provides clear visual feedback and easy configuration access, making machine setup and operation more intuitive for all users.

Q: How is noise managed during operation of this machine?

A: The integrated direct drive servo motor, along with advanced drive systems, ensures low-noise performance. This reduces work environment disturbances and enables comfortable long-term operation, crucial in busy or shared studio settings.

Q: What are the key benefits of the Vigorous Ape Dual-Drive system?

A: The Vigorous Ape Dual-Drive system offers enhanced torque and exceptionally smooth machine operation. It delivers consistent power even at high speeds, improving stitch stability and reducing fabric slippage, resulting in superior sewing outcomes.
