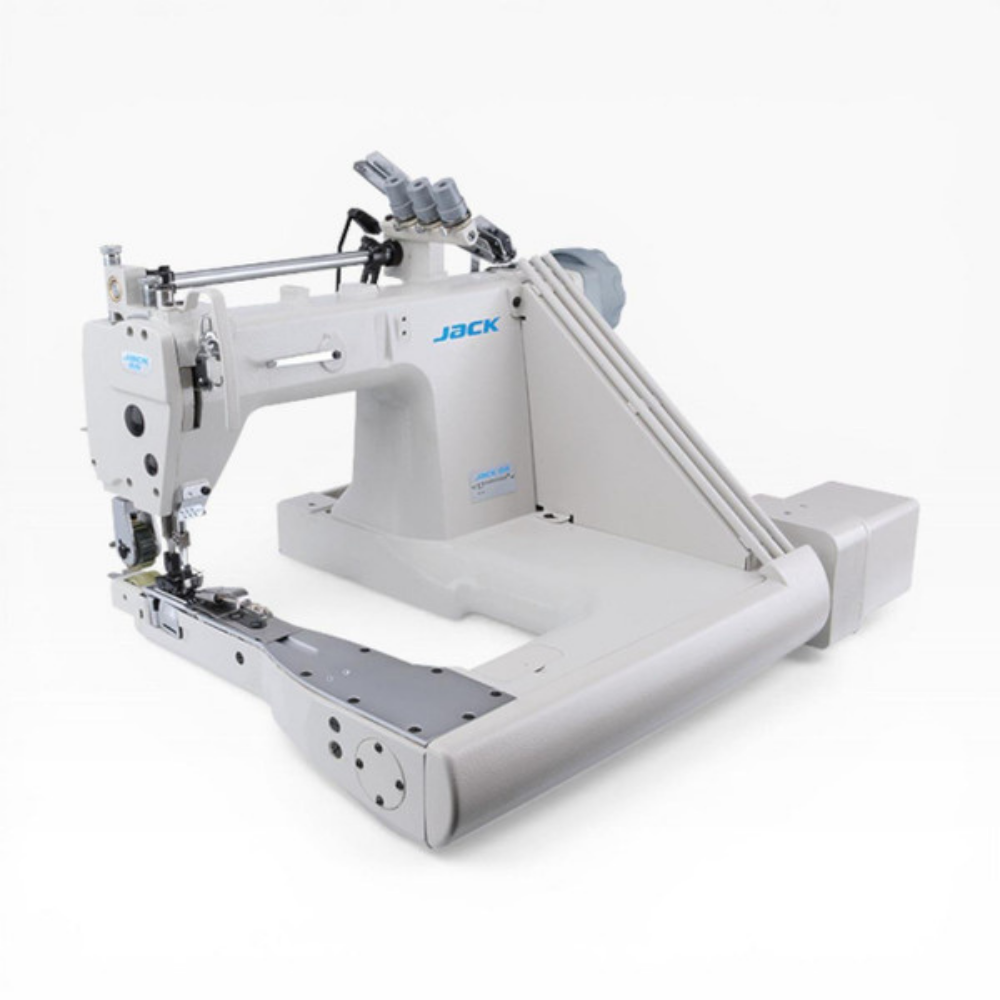

Jack JK-9270D Direct Drive Feed-Off-The-Arm Double Chainstitch Lap Seaming Machine

71400.0 INR/PCS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jack JK-9270D Direct Drive Feed-Off-The-Arm Double Chainstitch Lap Seaming Machine Price And Quantity

Price 71400.0 INR/PCS
Minimum Order Quantity 1 PCS

Product Description

Basic Product Details

Product Name: Jack JK-T9270D Feed-Off-The-Arm Sewing Machine
Brand: Jack
Model Number: JK-T9270D / JK-9270D
Machine Type: Feed-off-the-Arm / Chainstitch Machine
Stitch Type: Double Chainstitch (2 Needle / 3 Needle options)
Condition: New
Usage/Application: Lap Seaming, Side Seam & Sleeve Stitching for Shirts, Raincoats, Jeans, Workwear & Uniforms
Suitable Fabrics: Light to Medium Fabrics (Cotton, Synthetic, Denim, Knits)

Product Specifications Table

Feature / Parameter	Technical Specification
Max Sewing Speed	3500 4000 SPM (Stitches Per Minute)
Needle System	TVx64 (#12 to #14)
Needle Gauge Options	1/4 inch (6.4mm) / 3/16 inch (4.8mm)
Max Stitch Length	1.4 mm 4.2 mm (Push-button adjustable)
Presser Foot Lift Height	8 mm
Motor Type	Integrated Direct Drive Servo Motor (750W)
Power Consumption	220V / 50Hz (Energy saving up to 70%)
Puller Mechanism	Mechanical / Oil-Lubricated Rear Cloth Puller (PL/PS Device)
Lubrication System	Semi-Dry / Automatic Pump System
Lighting	Multi-Stage Adjustable Built-in LED Light

Key Features & Highlights

Integrated Direct Drive Motor: 750W built-in motor on the machine head ensures low noise, ultra-low vibration, and high energy efficiency.
Specialized Feed-off-the-Arm Design: Tubular arm design optimized for seamless joining of tubular and circular seams like shirt sleeves, side seams, and trousers.

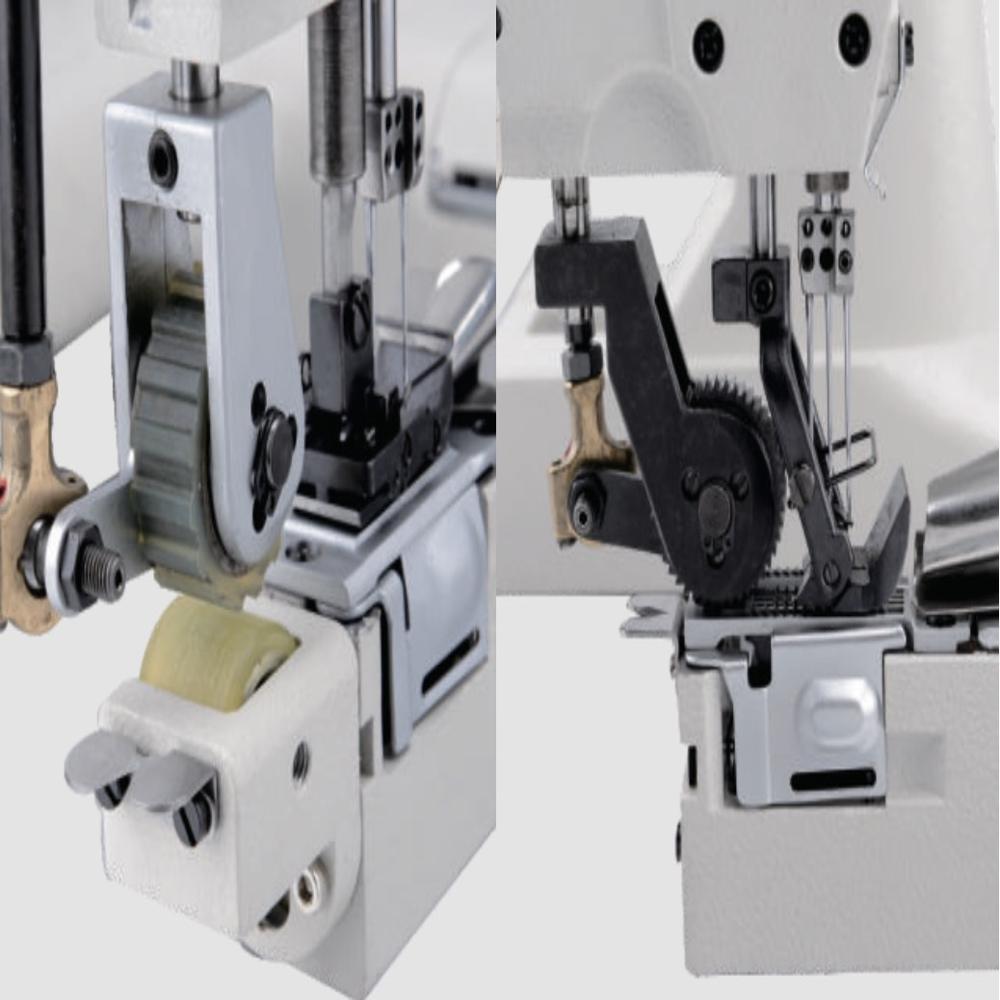

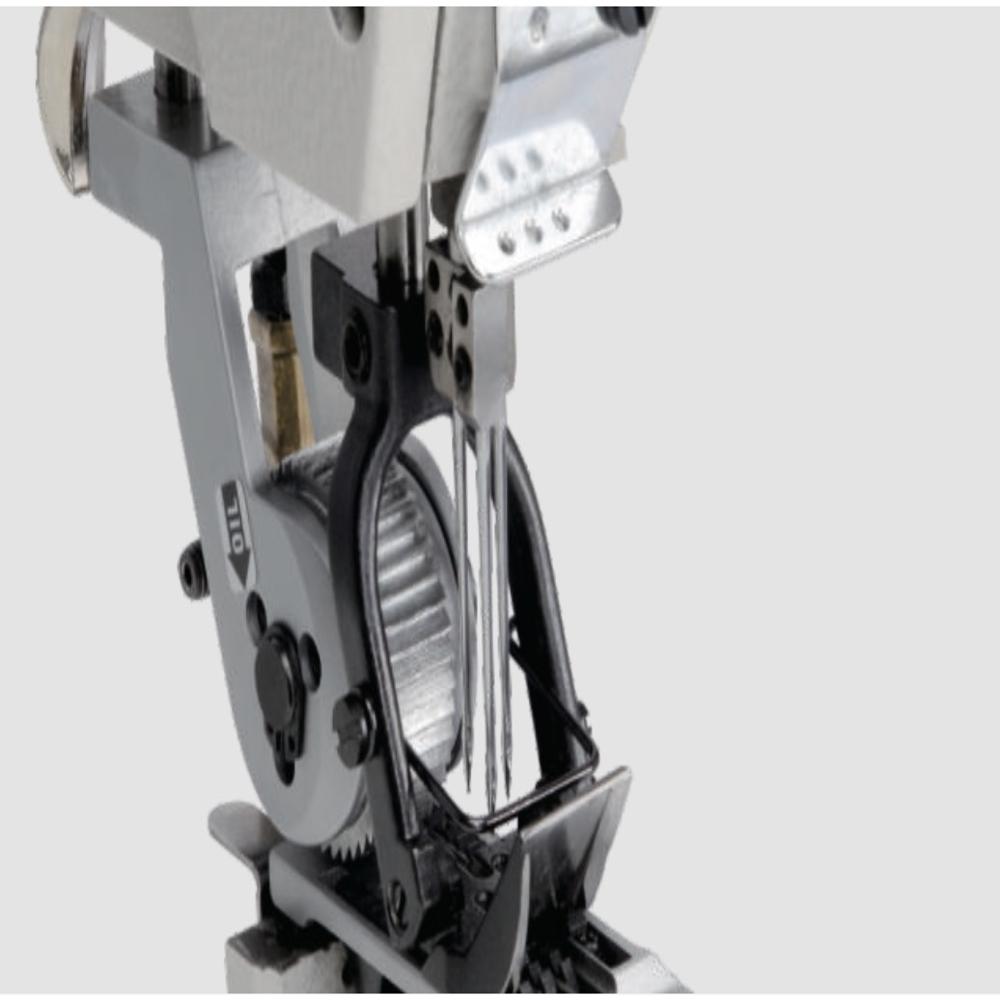

Efficient Rear Cloth Puller: Top and bottom roller puller mechanism prevents fabric slippage and ensures smooth, puckering-free feeding even over thick seams.

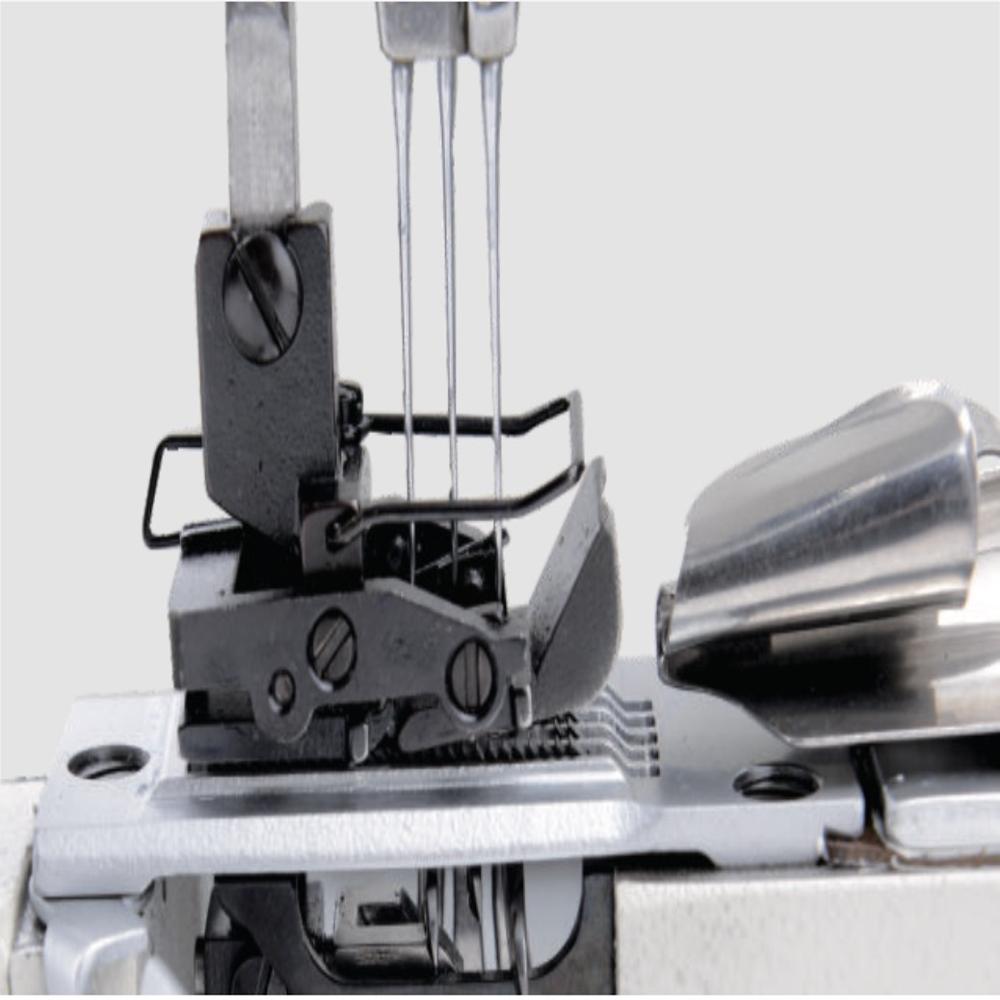

Puckering-Free Soft Seams: Newly designed folder and thread tension mechanism ensure balloon-type chainstitches with no stitch skipping.

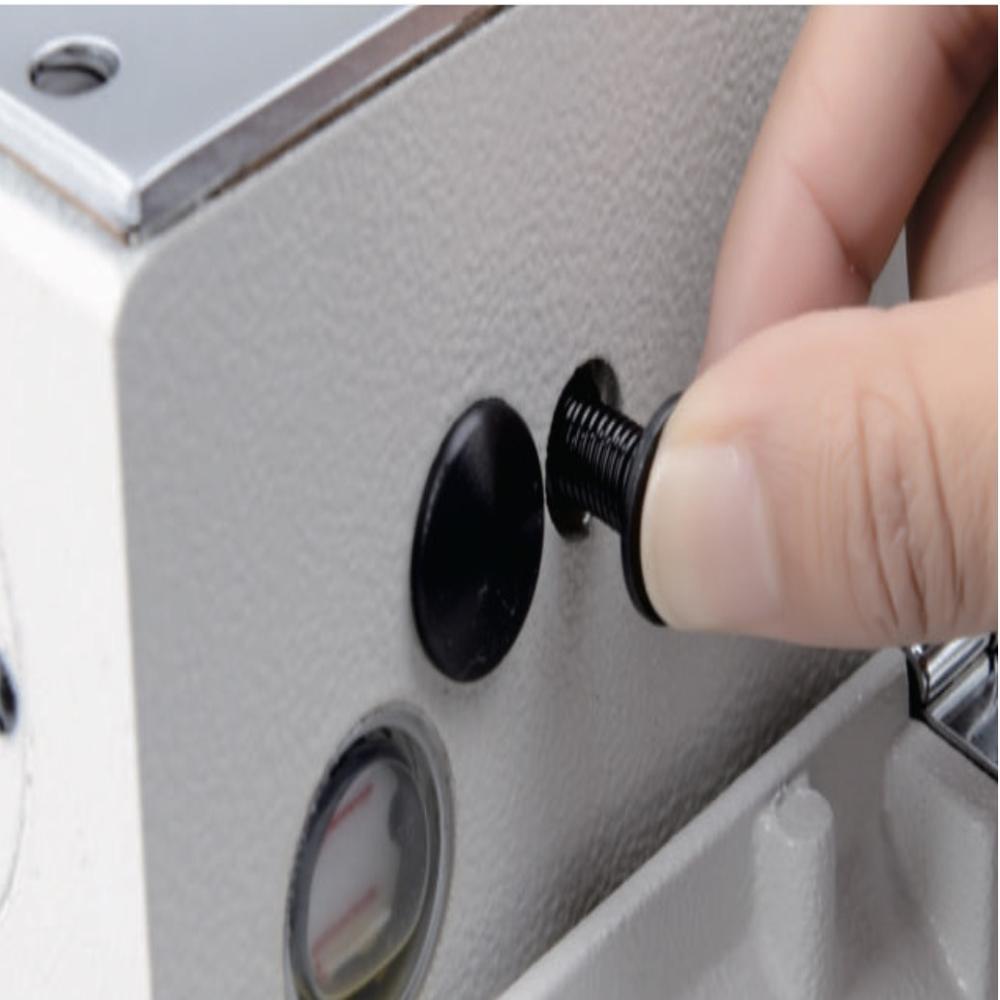

Push-Button Stitch Regulation: Easy-to-use push button mechanism for instant and precise stitch length adjustment.

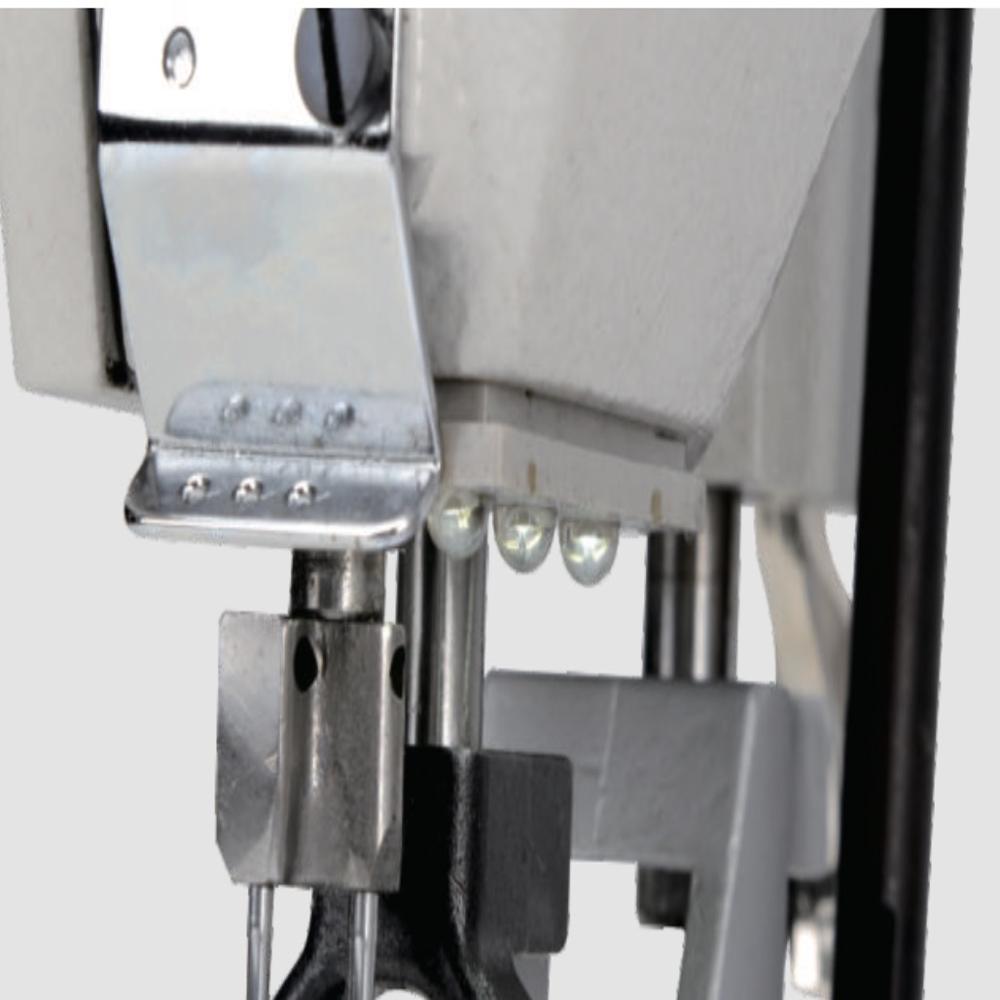

Integrated Speed & LED Control: Direct control panel on head for quick speed modification and integrated LED light to reduce eye strain.

The Jack JK-9270D (JK-T9270D) is an advanced direct-drive feed-off-the-arm chainstitch sewing machine designed for high-efficiency garment manufacturing. Ideal for shirt side seams, sleeve setting, raincoats, and light denim apparel, this machine features a specialized cylindrical arm for smooth operation around tubular garment sections.

Driven by an integrated 750W energy-saving direct-drive motor, the Jack 9270D provides high-speed stitching up to 4,000 SPM with minimal operational vibration. Equipped with a heavy-duty oil-lubricated rear puller, it eliminates fabric puckering and guarantees crisp, tight, and consistent chainstitches every time.
