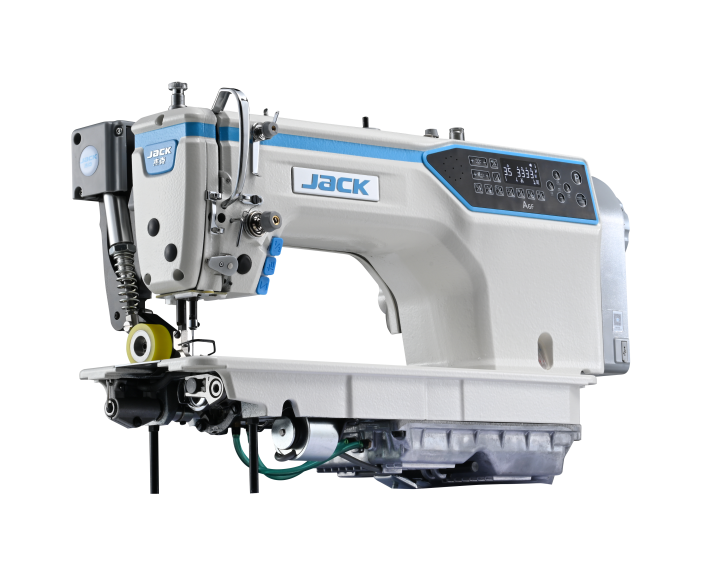

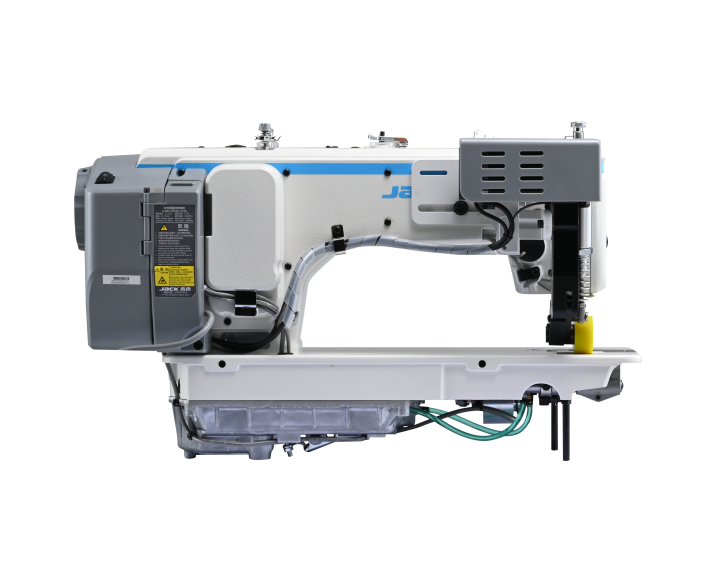

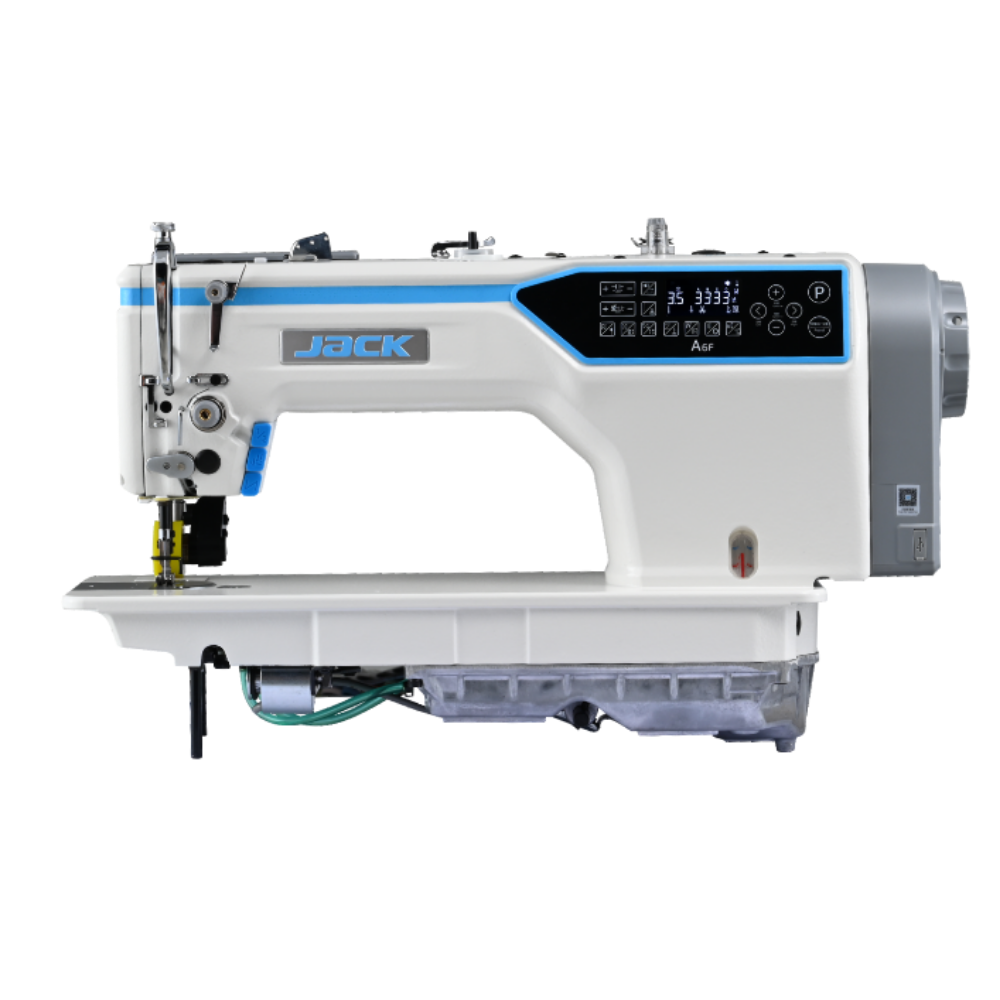

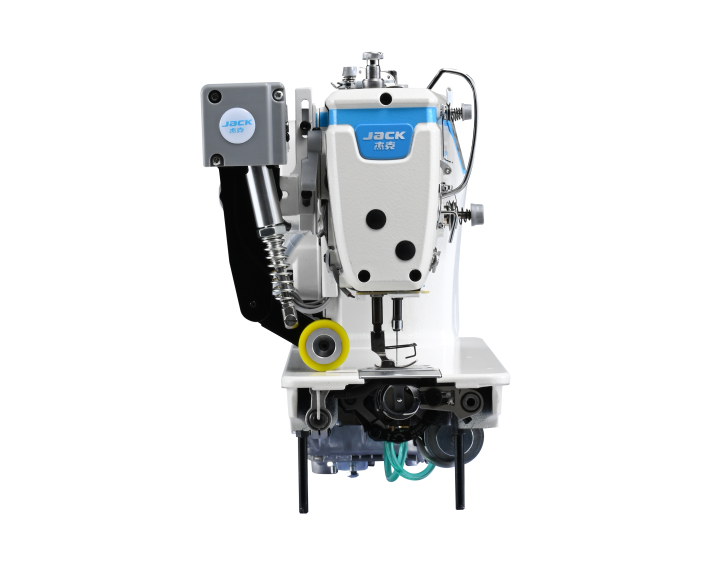

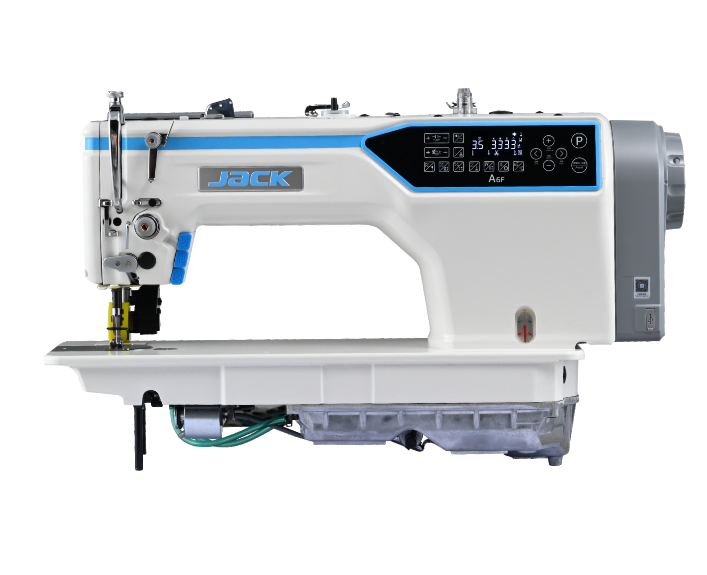

Jack A6FE Fully Digital Feed Direct Drive Lockstitch Machine with Short Thread Tail
57750.0 INR/Piece
Product Details:
- Length Max. stitch length up to 5 mm
- Luster Matte finish, professional appearance
- Material High-quality metal and engineered plastic
- Character Fully digital, advanced sewing machine
- Properties Direct drive, short thread tail, energy-saving, low noise
- Style Modern, industrial
- Usage Apparel, garment manufacturing, standard lockstitch operations
- Click to View more
X
Jack A6FE Fully Digital Feed Direct Drive Lockstitch Machine with Short Thread Tail Price And Quantity
- 1 Piece
- 57750.0 INR/Piece
Jack A6FE Fully Digital Feed Direct Drive Lockstitch Machine with Short Thread Tail Product Specifications
- Direct drive, short thread tail, energy-saving, low noise
- Lockstitch (single needle)
- Apparel, garment manufacturing, standard lockstitch operations
- Modern, industrial
- White with blue/grey accents
- Matte finish, professional appearance
- High-quality metal and engineered plastic
- Max. stitch length up to 5 mm
- Short thread trimming, user-friendly operation, intelligent panel
- Digital feed technology, electronic control
- Approx. 35-40 kg (with table and motor)
- Suitable for a wide range of thread counts (standard to fine)
- Fully digital, advanced sewing machine
- Compatible with various sewing threads
- A6FE
- 5000 stitches per minute (SPM)
- Needle positioner, LED lighting, error code display, electronic thread tension, customizable sewing patterns
- Fully digital/touch panel with preset functions
- Low operation noise, silent mode available
- Automatic, sealed oil supply
- 220V/110V, 50/60Hz
- Integrated direct drive servo motor (energy-saving)
- Light to medium heavy fabrics
- DBx1 (standard)
- Automatic, short thread tail (3mm-5mm)
- Max 13 mm (automatic/manual)
Jack A6FE Fully Digital Feed Direct Drive Lockstitch Machine with Short Thread Tail Trade Information
- 5-7 Days
Product Description
| Machine Series | A2 |
| Machine Type | Single needle |
| Application | Heavy fabric, Denim, Light fabric, Medium fabric |
| Max Speed | 5000 spm |
| Motor Type | Direct drive |
| Stitch Type | Lockstitch |
| Auto Functions | Needle position, Auto foot lift, Back tack, Auto trimmer |
| Panel Type | LED |
Applications
JACK A6F-E can be used for stitching shirts, blouses, uniforms, workwear, children's garments, ladies' garments, men's garments, lingerie and other textile and apparel products. It can also be used for suitable cotton, polyester, nylon, knit, sheer and denim materials with appropriate machine settings and accessories.
Technical Specifications
Model: JACK A6F-EMachine Type: Computerized Needle Feed Lockstitch MachineNeedle System: DB1 1118#Material Application: Light, Medium & Elastic MaterialsMaximum Stitch Length: 5 mmPresser Foot Height: 513 mmOperating Space: 10 inchesMaximum Sewing Speed: Up to 4,000 stitches/minuteMotor: Built-in Direct Drive MotorMotor Power: 550 W / 34 HPStitch Type: Lockstitch
Industries Served
Garment Manufacturing Industry Apparel Manufacturing Industry Textile Industry Uniform Manufacturing Workwear Manufacturing Fashion Garment Production Clothing Manufacturing Sewing & Stitching Units Industrial Garment Production
Key Features
Computerized needle-feed lockstitch system Single-needle industrial sewing machine Direct-drive motor system Automatic reverse/backtacking Automatic thread trimming Needle positioning function Electric presser-foot lift Electric thread clamp Built-in bobbin winder Stitch counter Built-in LED lighting Automatic lubrication system Sealed oil pan design Digital stitch-length control Large operating space Low-noise electronic reverse sewing Smooth material feeding
JACK A6F-E is a computerized single-needle needle-feed lockstitch industrial sewing machine designed for accurate, smooth and consistent stitching of light, medium and selected elastic materials. The machine combines needle-feed technology with computerized controls, direct-drive motor technology and automatic functions to support efficient industrial garment and apparel production.
The needle-feed mechanism helps move the material together with the needle bar, providing smoother feeding and helping reduce fabric shifting and layer offset during stitching. The machine is suitable for a wide range of garment and textile applications where consistent stitch quality and controlled fabric feeding are important.
JACK A6F-E can be used for stitching shirts, blouses, uniforms, workwear, children's garments, ladies' garments, men's garments, lingerie and other textile and apparel products. It can also be used for suitable cotton, polyester, nylon, knit, sheer and denim materials with appropriate machine settings and accessories.
Technical Specifications
Model: JACK A6F-EMachine Type: Computerized Needle Feed Lockstitch MachineNeedle System: DB1 1118#Material Application: Light, Medium & Elastic MaterialsMaximum Stitch Length: 5 mmPresser Foot Height: 513 mmOperating Space: 10 inchesMaximum Sewing Speed: Up to 4,000 stitches/minuteMotor: Built-in Direct Drive MotorMotor Power: 550 W / 34 HPStitch Type: Lockstitch
Industries Served
Garment Manufacturing Industry Apparel Manufacturing Industry Textile Industry Uniform Manufacturing Workwear Manufacturing Fashion Garment Production Clothing Manufacturing Sewing & Stitching Units Industrial Garment Production
Key Features
Computerized needle-feed lockstitch system Single-needle industrial sewing machine Direct-drive motor system Automatic reverse/backtacking Automatic thread trimming Needle positioning function Electric presser-foot lift Electric thread clamp Built-in bobbin winder Stitch counter Built-in LED lighting Automatic lubrication system Sealed oil pan design Digital stitch-length control Large operating space Low-noise electronic reverse sewing Smooth material feeding
JACK A6F-E is a computerized single-needle needle-feed lockstitch industrial sewing machine designed for accurate, smooth and consistent stitching of light, medium and selected elastic materials. The machine combines needle-feed technology with computerized controls, direct-drive motor technology and automatic functions to support efficient industrial garment and apparel production.
The needle-feed mechanism helps move the material together with the needle bar, providing smoother feeding and helping reduce fabric shifting and layer offset during stitching. The machine is suitable for a wide range of garment and textile applications where consistent stitch quality and controlled fabric feeding are important.
Efficient and Precise Lockstitching
The Jack A6FE stands out for its automatic functions, including thread trimming with a consistently short tail, presser foot lift, and digital control for customizable patterns. Combined with a high-speed, direct drive servo motor, it supports seamless workflow and high-quality stitching with minimal manual intervention. Suitable for both light and medium heavy materials, this machine is ideal for apparel and garment manufacturers aiming for accuracy and productivity.
Advanced Digital Controls for Intuitive Operation
With a fully digital touch panel, operators can easily program stitch patterns, control electronic thread tension, and monitor system status via error codes. The intelligent interface simplifies adjustments, saving time during setup and production while enhancing consistency across multiple sewing tasks. User-friendly operation ensures adaptation for both new and experienced personnel.
FAQ's of Jack A6FE Fully Digital Feed Direct Drive Lockstitch Machine with Short Thread Tail:
Q: How does the Jack A6FE's automatic thread trimming improve sewing efficiency?
A: The automatic thread trimming feature cuts thread ends to a short, consistent length (3mm-5mm) after each stitch, minimizing manual snipping and saving time during garment production. This leads to a cleaner finish and faster post-sewing processing.Q: What types of fabrics and threads are suitable for use with the Jack A6FE?
A: This machine performs optimally on light to medium heavy fabrics and is compatible with a wide range of sewing thread counts, making it suitable for various apparel and garment applications.Q: What benefits does the fully digital touch panel offer?
A: The digital touch panel allows for simple presetting of stitch patterns, adjustment of thread tension, and monitoring of machine status. This streamlines both setup and operation, contributing to increased productivity and consistent results.Q: When should the integrated presser foot lift be used, and how does it work?
A: The presser foot can be lifted automatically or manually up to 13 mm, providing ample clearance when positioning or removing fabrics. This function is essential during material changes or when sewing bulky seams.Q: Where can the Jack A6FE be best utilized?
A: This machine is ideal for apparel factories, tailoring workshops, and garment manufacturing lines requiring high-speed, industrial lockstitch operations and consistent quality.Q: How does the sealed lubrication system benefit long-term use?
A: The automatic sealed oil supply keeps internal components lubricated, reducing maintenance frequency and extending the machine's service life, while preventing oil stains on fabrics.Q: What process and features make this machine energy-efficient and quiet in operation?
A: Equipped with an integrated direct drive servo motor, the Jack A6FE ensures energy savings by delivering power only when needed, while its silent mode and advanced engineering contribute to a low-noise, comfortable working environment.Tell us about your requirement
