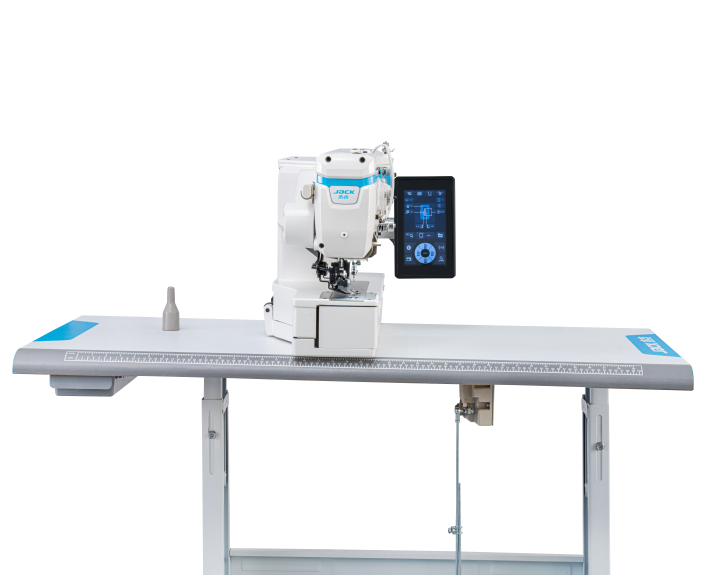

Jack N9 High Speed Direct Drive Automatic Computerized Lockstitch Machine

Name: Jack N9 High Speed Direct Drive Automatic Computerized Lockstitch Machine
Brand: SURENDRA KUMAR & CO.
Price: 225750.0 INR
Availability: InStock

225750.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jack N9 High Speed Direct Drive Automatic Computerized Lockstitch Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 225750.0 INR/Piece

Product Description

Basic Product Details

Product Name: Jack N9 High Speed Computerized Direct Drive Buttonhole Sewing Machine
Brand: Jack
Model Number: Jack N9 / JK-T1790N9
Machine Type: Computerized Buttonhole Sewing Machine / Buttonholing Machine
Stitch Type: Lockstitch Buttonhole
Condition: New
Usage/Application: Shirt Buttonholes, Suits, Trousers, Jeans, Jackets, Workwear & Apparel Manufacturing
Suitable Fabrics: Light, Medium, and Heavy Fabrics (Cotton, Linen, Denim, Knits, Blends)

Product Specifications Table

Feature / Parameter	Technical Specification
Max Sewing Speed	4200 SPM (Stitches Per Minute)
Max Buttonhole Length	6.4 mm 40 mm (Extendable up to 70mm / 120mm with optional clamps)
Buttonhole Width	2.5 mm 5.0 mm
Presser Foot Lift Height	Automatic: Up to 14 mm 17 mm
Pre-installed Patterns	30+ Standard Built-in Buttonhole Shapes (Supports custom editing)
Needle System	DPx5 (#11 to #14)
Motor Type	Integrated Direct Drive Servo Motor
Control Interface	Large Vertical High-Definition Touch Screen Smart Panel
Power Consumption	220V / 50Hz (Energy saving up to 70%)
Auto Functions	Auto Knife Cutter, Auto Presser Foot Lifter, Auto Thread Trimmer
Lubrication System	Semi-Dry / Oil-Free Needle Bar Mechanism

Key Features & Highlights

Large Vertical Touch Screen Panel: Intuitive color touchscreen allows quick selection of buttonhole patterns, stitch density adjustments, size modification, and operational control.
Electronic Thread Tension Control: Digital thread tension regulation automatically adapts to varying fabric thicknesses, eliminating loose threads and stitch skipping.
Multi-Cut Knife System: Cuts buttonholes of multiple lengths without needing to physically change the knife blade, maximizing production speed.
Clean & Semi-Dry Technology: Sealed lubrication prevents oil leakage around the needle area, keeping garments clean and free from oil stains.
30+ Pre-Programmed Patterns: Comes with pre-loaded buttonhole styles (straight, bar tack, round end) and includes USB support to import custom parameters.
Direct Drive Energy Saver: Integrated high-torque servo motor ensures smooth, ultra-quiet performance while reducing electricity consumption by up to 70%.

Detailed Product Description

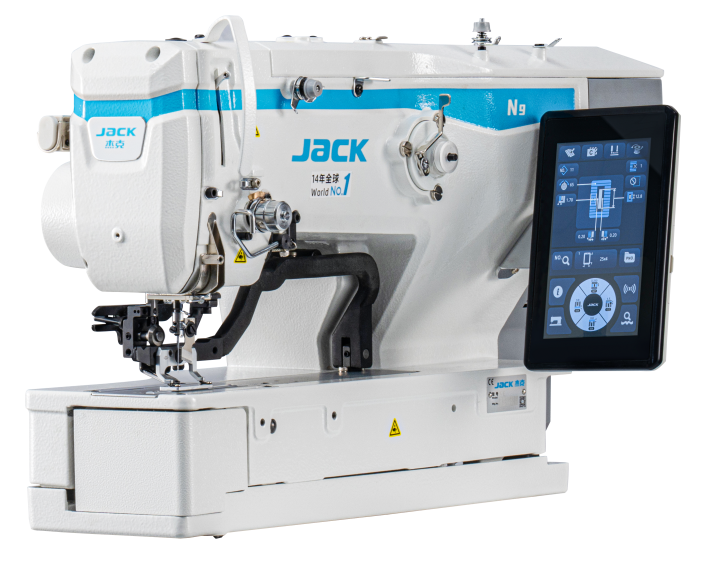

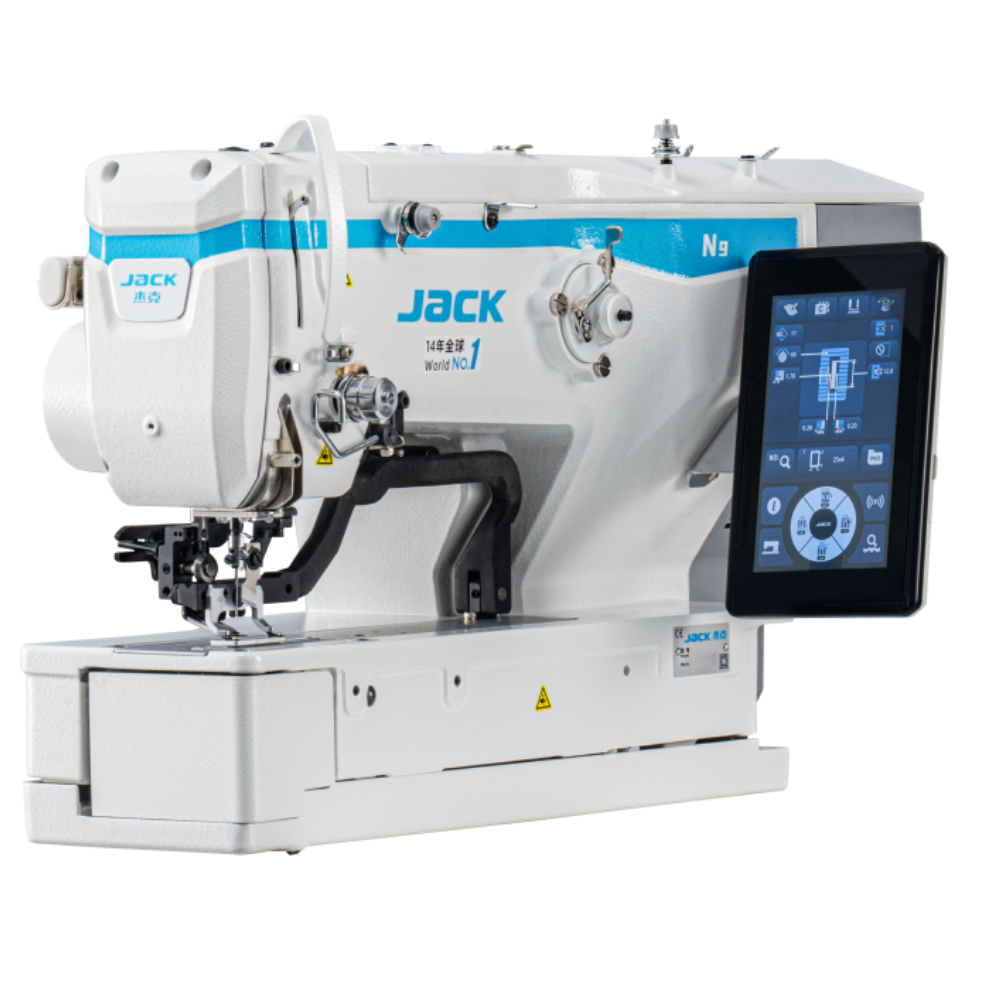

The Jack N9 (JK-T1790N9) is an advanced, high-precision computerized buttonhole sewing machine designed for modern apparel manufacturing. Featuring a distinctive vertical touch screen display, operators can easily configure buttonhole shapes, stitch dimensions, and speed settings with a single touch.

Ideal for high-volume shirt factories, suit tailors, and denim production lines, the Jack N9 combines electronic thread tensioning with a multi-cut knife mechanism to deliver crisp, perfectly finished buttonholes on any fabric thickness. Its semi-dry head design protects fabrics from oil stains, while the direct-drive motor ensures maximum power efficiency and long-term durability.
