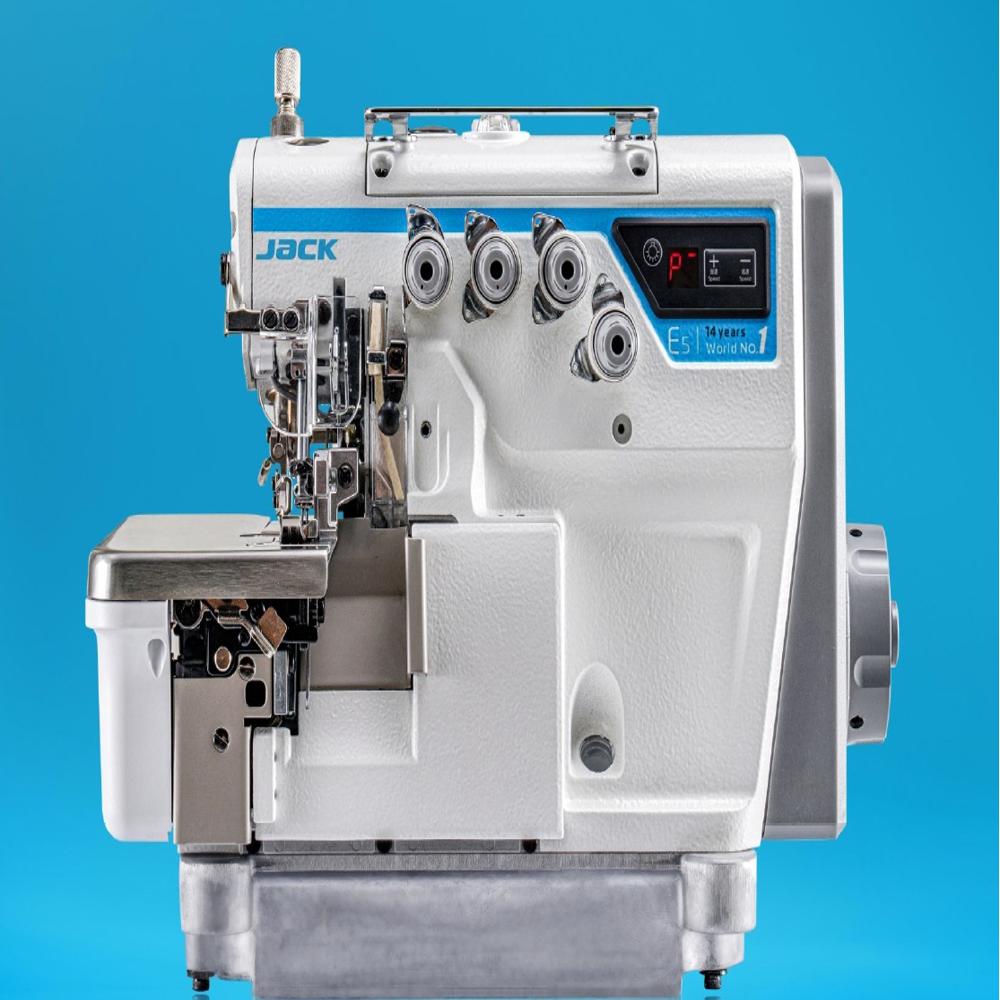

Jack E5 Computerized Direct Drive Super High Speed Overlock Sewing Machine

39375.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jack E5 Computerized Direct Drive Super High Speed Overlock Sewing Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 39375.0 INR/Piece

Product Description

Basic Product Details

Product Name: Jack E5 High Speed Direct Drive Overlock Sewing Machine
Brand: Jack
Model Number: E5 / E5-4 / E5-5 / E5-6
Machine Type: Overlock Sewing Machine / Interlock Machine
Stitch Type: Overlock / Safety Stitch (3-Thread, 4-Thread, 5-Thread options)
Condition: New
Usage/Application: Garment Manufacturing, T-shirts, Shirts, Sportswear, Trousers, Innerwear & Heavy Fabrics
Suitable Fabrics: Light, Medium, and Heavy Fabrics (Cotton, Knits, Denim, Silk, Synthetics)

Product Specifications Table

Feature / Parameter	Technical Specification
Max Sewing Speed	5500 6500 SPM (Stitches Per Minute)
Number of Needles	1 / 2 Needles (Depending on sub-model)
Number of Threads	3 / 4 / 5 Threads
Stitch Length	0.8 mm 5 mm
Overedging Width	4 mm / 5 mm / 6 mm
Presser Foot Lift Height	Manual / Knee Lifter: Up to 5.5 mm 6.5 mm
Needle System	DCx27 (#11 to #14)
Motor Type	Integrated Direct Drive Servo Motor
Control Interface	Integrated Digital LED Display Speed Control Panel
Power Consumption	220V / 50Hz (Energy saving up to 70%)
Lighting	Multi-Stage Adjustable Built-in LED Light
Lubrication System	Fully Automatic Closed Oil Supply System

Key Features & Highlights

Direct Drive Energy-Saving Motor: Features an integrated direct-drive servo motor mounted on the main shaft, offering smooth starting, low vibration, low noise, and up to 70% power savings.
Smart Digital Panel: Built-in digital control panel allows easy speed adjustment, parameter settings, and optical reset with a single touch.
Heavy-Duty & Smooth Feeding: Heavy-duty differential feed mechanism ensures smooth, puckering-free stitching on both ultra-light fabrics and heavy materials like denim.
Enclosed Needle Bar Mechanism: Advanced sealed oil return design prevents oil splashes and leakage around the needle bar, ensuring clean, stain-free garments.
Coaxial Main Shaft Design: Reduced machine torque allows higher speed stability and extended mechanical lifespan.
Integrated LED Light: Adjustable multi-stage LED light directly illuminates the sewing area, reducing operator eye strain and improving accuracy.

Detailed Product Description

The Jack E5 is a high-speed, direct-drive power-saving overlock sewing machine designed for high-efficiency garment production. It is engineered to handle a wide spectrum of fabrics ranging from delicate knits and cottons to thick denim and sportswear.

Driven by an integrated direct-drive servo motor, the Jack E5 delivers ultra-smooth sewing up to 6,500 SPM with low operational noise and minimal vibration. Its user-friendly digital control panel allows operators to adjust speeds effortlessly, making it an ideal choice for garment factories looking to increase output while lowering energy costs.
